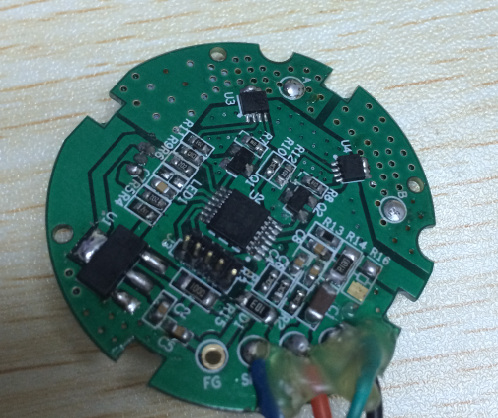

model |
HEX-BLDC-006 |
|
hall sensor |
With Holzer sensor |
|
Rated voltage |
5V~13V |
|
electric current |
No-load current: 0.25A, load current: 0.5A |
|
Start-up time |
0.2s~0.3s |
|
speed |
No-load speed: 6000~10000RPM, load speed: 5100RPM |
|
Torsion |
400g.cm |
|
PCB size |
Outside diameter 5mm, inner diameter PCB 26mm built-in (size can be customized) |
|
Incidental function |
Over current protection, blocking protection, under voltage protection, CW\CCW, speed regulation function |
|
application area |
Brushless DC water pump, hair curling device, kitchen electric machine |
|
model |
HEX-BLDC-017 |
|
hall sensor |
Without Holzer sensor |
|
Rated voltage |
7.4V |
|
electric current |
5A |
|
Start-up time |
0.2s~0.3s |
|
speed |
6000RPM |
|
PCB size |
Outside diameter 26mm, inner diameter 6mm, PCB built-in (size can be customized) |
|
Incidental function |
Over current protection, blocking protection, under voltage protection, CW\CCW, speed regulation function |
|
application area |
Air purifier motor, brushless DC pump, hair brush, home appliance |
Note: for the DC brushless motor control circuit parameters and functions have other requirements can be re customized
|
model |
HEX-BLDC-022 |
|
hall sensor |
Without Holzer sensor |
|
Rated voltage |
6V/12V/24V |
|
electric current |
1.5A |
|
Start-up time |
0.2s~0.3s |
|
speed |
4000 RPM ~10000RPM |
|
PCB size |
Outside diameter 27mm, inner diameter 5mm, PCB built-in (size can be customized) |
|
Incidental function |
Over current protection, blocking protection, under voltage protection, CW\CCW, speed regulation function |
|
application area |
Fan, air purifier motor, brushless DC water pump, hair brush, home appliance |
