model |
HEX-BLDC-001 |
|
hall sensor |
Without Holzer sensor |
|
Rated voltage |
3.0V~4.2V (single lithium battery) |
|
electric current |
No-load current: <0.1A, load current: 0.5A~1.2A |
|
Start-up time |
0.2s~0.3s |
|
speed |
No-load speed: 8400RPM, load speed: 7500RPM |
|
moment |
150g |
|

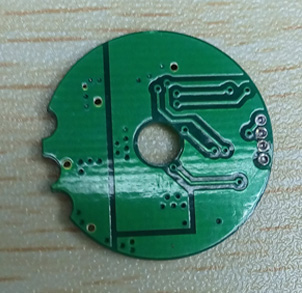

PCB size |
Outside diameter 4mm, inner diameter PCB 22mm built-in (size can be customized) |
|
Incidental function |
Over current protection, blocking protection, under voltage protection, CW\CCW, speed regulation function |
|
application area |
Lithium battery powered small power motor products, such as: hair, electric toothbrush, razor, electric knife, etc. |
Note: for the DC brushless motor control circuit parameters and functions have other requirements can be re customized
|
model |
HEX-BLDC-026 |
|
hall sensor |
Without Holzer sensor |
|
Rated voltage |
6.5V~7.4V (two lithium batteries) |
|
electric current |
No-load current: <0.1A, load current: 0.5A~1.2A |
|
Start-up time |
0.2s~0.3s |
|
speed |
No-load speed: 8400RPM, load speed: 7500RPM |
|
moment |
150g |
|
PCB size |
Outside diameter 4mm, inner diameter PCB 22mm built-in (size can be customized) |
|
Incidental function |
Over current protection, blocking protection, under voltage protection, CW\CCW, speed regulation function |
|
application area |
Lithium battery powered small power motor products, such as: hair, electric toothbrush, razor, electric knife, etc. |
Note: for the DC brushless motor control circuit parameters and functions have other requirements can be re customized
