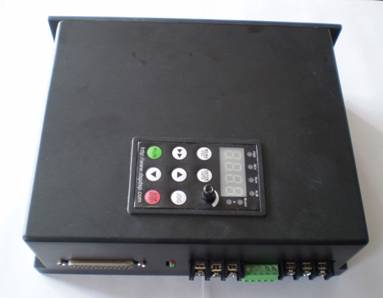

(Haibo Technology) high voltage sine wave motor controller
Product type and profile:
Introduction: 180 degree high voltage sine wave brushless DC motor controller is made by Shanghai three motor drive technology Co., ltd.. Low cost, non isolation scheme, resistance sampling, 180 PFC single chip integrated scheme for permanent magnet brushless DC motor with no encoder feedback is suitable for the high quality solution of DC brushless motor control.
Technical performance index:
The high reliability
By the noise test, high and low voltage electromagnetic compatibility test, etc..
By all kinds of test and inspection, see chart below:
|
DC Air-con (FOC+PFC) testing result |
|||||
|
Mode |
Temperature(℃) |
Duration(hours) |
Process |
Result |
|
|
Outdoor |
Indoor |
|
|||
|
Cooling |
45 |
34 |
24 |
done |
No fault reported |
|
35 |
27 |
24 |
done |
No fault reported |
|
|
21 |
21 |
24 |
done |
No fault reported |
|
|
27 |
27 |
24 |
done |
No fault reported |
|
|
|
|
|
|
|
|
|
Heating |
24 |
27 |
24 |
done |
No fault reported |
|
7 |
20 |
24 |
done |
No fault reported |
|
|
2 |
20 |
24 |
done |
No fault reported |
|
|
-7 |
20 |
24 |
done |
No fault reported |
|
|
|
|
|
|
|
|
|
Defrost |
2 |
20 |
24 |
done |
No fault reported |
The integrated design, small number of devices, low failure rate
The perfect protection function: AC input overvoltage, overcurrent, overvoltage DC input, output over-current, over temperature protection
] a variety of electrical parameters acquisition report: AC input voltage, current, motor phase voltage, phase current, DC bus voltage, current all fault report and so on.
The compact structure design, easy to install
The interface is simple, easy to product modification and transplantation
The matching of various brands, various types of compressor
The input voltage range of AC 165-265V, 50HZ
The supply current: 12A, 220V (RMS)
The operating frequency: 15-120Hz
The rated power: 1.5KW (2 HP)
The speed closed-loop control, speed control, analog voltage control mode for serial port
The forward or reverse and run enable
The internal thermal shutdown characteristics
The output signal speedout with speed feedback.
Typical application:
Inverter air conditioner compressor, refrigerator compressor, refrigerator compressor, shredders, no wind brush machine, brushless pumps, inverter washing machine automation control adaptation without Hall sensor brushless DC motor control applications.
Shenzhen Haibo Technology (Hong Kong) Co., Ltd. www.hkhaibo.com in 2008, the established, currently in Shenzhen, Jinan established branch, and in Ningbo, Changzhou to set up offices. We have our own professional development team and perfect supply chain management. Committed to the integration of the motor class solution, for the application of the motor, provide a complete solution and provide customized support, with its own product line advantage, can effectively optimize the client's material costs, significantly reduce the risk and cost of customers.
Provide professional services to customers' needs of new product promotion, rapid sample, application consulting, project design support, development environment, after sales, logistics, etc.. In the past six years, our unremitting efforts in the application relates to a fan, fan, water pump, variable frequency washing machine, pumping lampblack machine, mixer, dishwasher, industrial control and so on many fields. To gain high recognition in the marketing.
Haibo technology to provide complete technical solutions, customized according to customer requirements, from the program to a one-stop production, with the strength for you to solve the problem.
Want to learn more about the problem of Brushless DC motor, welcome to inquire: 0755-83011521 (Mr.li)
