(Haibo Technology) brushless DC micro motor

1, brushless DC motor is extremely reliable, designed to provide the most excellent performance. Their high power density can reduce the size of most applications. At higher speeds, they can be kept silent. Their heat resistance is an ideal choice for medical applications.
2, there are slots and no slot Technology
Rack size range of 12.7 mm (0.5 in) to 58 mm (2.3 in)
Speed up to 100000 rpm
Torque range of 2.3 mNm (0.32 oz-in) to 316 mNm (44.7 oz-in)
Holzer sensors, no sensors, integrated electronics or 2 wire options are possible
High temperature sterilization function
Provide a wide range of products and customization capabilities.
3, why choose brushless motor
Brushless Technology
The conventional DC motor uses a permanent magnet with a rotating armature, which provides automatic commutation with the combination of the reversing part and the electric brush. In contrast, no brush DC motor exactly the contrary to the design: permanent magnet to rotate the coil, and a stator part, so there is no need to use commutator and brush system can also excitation. Therefore, this type of motor, even in the ultra high speed operation, can also maintain a very long, and no fault of the service life.

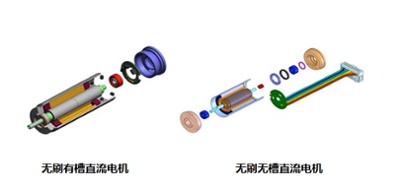

4, with slot and slot Technology

This technique was used in a stator coil, the axial groove stator is composed of magnetic sheet and placed on the outer circumference of the. This is called the brushless DC motor, which belongs to the slot core structure. Another technique using self-sustaining cylindrical wire circle, with our non iron core rotor DC motor of the same coil technology. This is called the brushless DC motor, which belongs to the non slot iron core structure.
